More than the sum of its parts

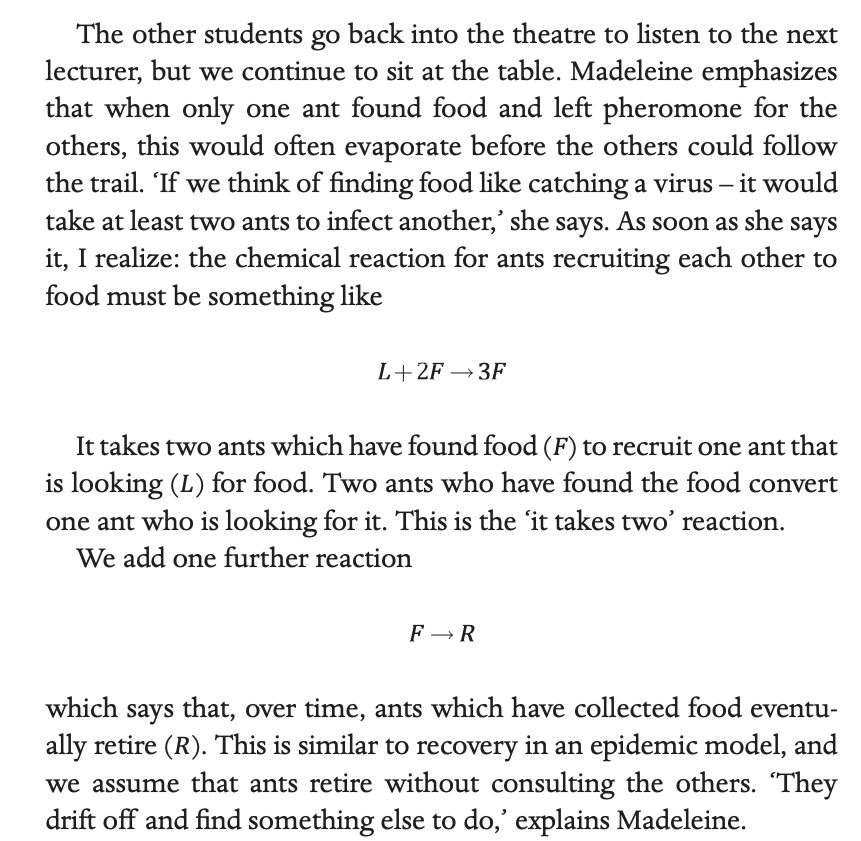

In the book, Madeliene and I formulate a model for how ants forage for food and come up with rules of interaction,

This section was inspired by an article I wrote together with Madeleine Beekman.

Let’s turn these rules in to differential equation and investigate properties of the model.

The model

In terms of differential equations, the rate of change of ‘looking’ for food individuals is

(1)\[\frac{dL}{dt} = \underbrace{-b L F^2 }_{\mbox{L} + \mbox{2F} \xrightarrow{b} \mbox{3F}}\]

and the rate of change of those who have ‘found’ the food is

(2)\[\frac{dF}{dt} = \underbrace{-b L F^2 }_{\mbox{L} + \mbox{2F} \xrightarrow{b} \mbox{3F}} - \underbrace{c F }_{\mbox{F} \xrightarrow{c} \mbox{R}}\]

The constant \(b\) is the rate of contact between ants and \(c\) is the rate of retiring. We can also write down an equation for resting ants as follows,

(3)\[\frac{dR}{dt} = \underbrace{c F }_{\mbox{F} \xrightarrow{c} \mbox{R}}\]

In this model \(L\), \(F\) and \(R\) are proportions of the population. Summing them up gives \(L+F+R=1\), since everyone in the popultaion is either susceptible, infective or recovered.

Numerical solution

Let’s now solve these equations numerically. We start by importing the libraries we need from Python, input the equations and then solve them numerically.

import numpy as np
import matplotlib.pyplot as plt
import matplotlib
from pylab import rcParams
matplotlib.font_manager.FontProperties(family='Helvetica',size=11)
rcParams['figure.figsize'] = 14/2.54, 7/2.54
from scipy import integrate


b=8
c = 0.4

def dXdt(X, t=0):
   return np.array([  - b*X[0]*X[1]*X[1] ,           #LookingX[0] is L
                      + b*X[0]*X[1]*X[1]  - c*X[1] , #Found Food X[1] is F
                        c*X[1]])                     #Resting X[2] is R

def plotOverTime(ax,F,linetype):
    ax.plot(t, F  , linetype,color='k')
    ax.set_xlabel('Time: t')
    ax.set_ylabel('Found Food: F')
    ax.spines['top'].set_visible(False)
    ax.spines['right'].set_visible(False)
    ax.set_xticks(np.arange(0,20,step=2))
    ax.set_yticks(np.arange(0,1.01,step=0.5))
    ax.set_xlim(0,20)
    ax.set_ylim(0,1)

t = np.linspace(0, 20,  1000)         # time
X0 = np.array([0.9, 0.1,0.0000])      # initially 10% have found food
X = integrate.odeint(dXdt, X0, t)     # uses a Python package to simulate the interactions
L, F, R = X.T
fig,ax=plt.subplots(1)
plotOverTime(ax,F,'-')
plt.show()

Phase plane

We can find the equilibria where the rate at which people become infected equals the rate at which they recover by solving

\[\frac{dF}{dt} = b L F^2 - c F = 0\]

This occurs either when \(F=0\) (no ants have found the food) or when

\[F = \frac{c}{bL}\]

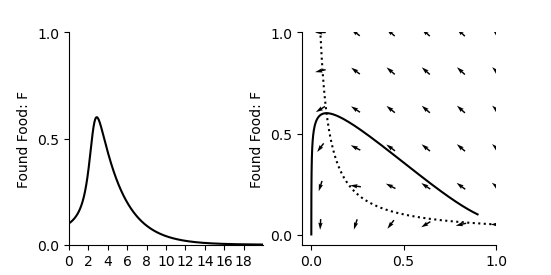

We now plot this below.

def plotPhasePlane(ax,L,F,linetype):
    ax.plot(L, F, linetype,color='k')
    ax.set_xlabel('Looking: L')
    ax.set_ylabel('Found Food: F')
    ax.spines['top'].set_visible(False)
    ax.spines['right'].set_visible(False)
    ax.set_xticks(np.arange(0,1.01,step=0.5))
    ax.set_yticks(np.arange(0,1.01,step=0.5))
    ax.set_ylim(-0.05,1)
    ax.set_xlim(-0.05,1)

def drawArrows(ax,dXdt):
    x = np.linspace(0.05, 1 ,6)
    y = np.linspace(0.05, 1, 6)
    X , Y  = np.meshgrid(x, y)
    dX, dY, dZ = dXdt([X, Y,1-X-Y])
    #Make in to unit vectors.
    M = np.hypot(dX,dY)
    dX = dX/M
    dY = dY/M
    ax.quiver(X, Y, dX, dY, pivot='mid')


F_equilibrium = np.linspace(0, 1,  1000)
L_equilibrium = c/(b*F_equilibrium)

fig,ax=plt.subplots(1,2)
plotOverTime(ax[0],F,'-')
ax[1].plot(L_equilibrium,F_equilibrium,linestyle=':',color='k')
plotPhasePlane(ax[1],L,F,'-')
drawArrows(ax[1],dXdt)
plt.show()

/home/docs/checkouts/readthedocs.org/user_builds/fourways/checkouts/latest/course/lessons/lesson2/plot_morethanthesum.py:134: RuntimeWarning: divide by zero encountered in divide
  L_equilibrium = c/(b*F_equilibrium)

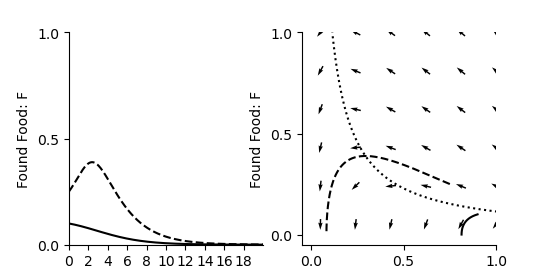

Now lets make b smaller

b=3.5
c = 0.4

fig,ax=plt.subplots(1,2)

t = np.linspace(0, 20,  1000)         # time
X0 = np.array([0.9, 0.1,0.0000])      # initially 10% have found food
X = integrate.odeint(dXdt, X0, t)     # uses a Python package to simulate the interactions
L, F, R = X.T
plotOverTime(ax[0],F,'-')
plotPhasePlane(ax[1],L,F,'-')


t = np.linspace(0, 20,  1000)         # time
X0 = np.array([0.75, 0.25,0.0000])      # initially 25% have found food
X = integrate.odeint(dXdt, X0, t)     # uses a Python package to simulate the interactions
L, F, R = X.T
plotOverTime(ax[0],F,'--')
plotPhasePlane(ax[1],L,F,'--')

F_equilibrium = np.linspace(0, 1,  1000)
L_equilibrium = c/(b*F_equilibrium)
ax[1].plot(L_equilibrium,F_equilibrium,linestyle=':',color='k')
drawArrows(ax[1],dXdt)


plt.show()

/home/docs/checkouts/readthedocs.org/user_builds/fourways/checkouts/latest/course/lessons/lesson2/plot_morethanthesum.py:170: RuntimeWarning: divide by zero encountered in divide
  L_equilibrium = c/(b*F_equilibrium)

And b smaller still

b=1
c = 0.4

fig,ax=plt.subplots(1,2)

t = np.linspace(0, 20,  1000)         # time
X0 = np.array([0.9, 0.1,0.0000])      # initially 10% have found food
X = integrate.odeint(dXdt, X0, t)     # uses a Python package to simulate the interactions
L, F, R = X.T
plotOverTime(ax[0],F,'-')
plotPhasePlane(ax[1],L,F,'-')


t = np.linspace(0, 20,  1000)         # time
X0 = np.array([0.75, 0.25,0.0000])      # initially 25% have found food
X = integrate.odeint(dXdt, X0, t)     # uses a Python package to simulate the interactions
L, F, R = X.T
plotOverTime(ax[0],F,'--')
plotPhasePlane(ax[1],L,F,'--')


t = np.linspace(0, 20,  1000)         # time
X0 = np.array([0.25, 0.75,0.0000])      # initially 25% have found food
X = integrate.odeint(dXdt, X0, t)     # uses a Python package to simulate the interactions
L, F, R = X.T
plotOverTime(ax[0],F,'-.')
plotPhasePlane(ax[1],L,F,'-.')

F_equilibrium = np.linspace(0, 1,  1000)
L_equilibrium = c/(b*F_equilibrium)
ax[1].plot(L_equilibrium,F_equilibrium,linestyle=':',color='k')
drawArrows(ax[1],dXdt)

plt.show()

/home/docs/checkouts/readthedocs.org/user_builds/fourways/checkouts/latest/course/lessons/lesson2/plot_morethanthesum.py:213: RuntimeWarning: divide by zero encountered in divide
  L_equilibrium = c/(b*F_equilibrium)
