I, II, III, IV

Throughout the book, we have used one dimensional cellular automata to illustrate ideas. In this section we look at the final class of cellular automata (CA), complex, and investigate some of their properties.

In Santa Fe

Here Chris presents a new set of rules,

The output of this looks as follows,

We can simulate this cellular automata using the same code as we used in the section cellular chaos, as follows,

import numpy as np

def generate_ca(rule, steps, input_string='', size=50,print_output=1):
    # Initialize the list of cells with a single "on" cell in the middle
    if input_string=='':
        cells = [0] * size
        cells[size // 2] = 1
    else:
        cells=list(map(int, [*input_string]))
        size=len(input_string)

    #Store the middle column
    middle_column=[cells[size // 2]]


    # Create a dictionary for mapping inputs to outputs
    patterns = {
        (1, 1, 1): rule[0],
        (1, 1, 0): rule[1],
        (1, 0, 1): rule[2],
        (1, 0, 0): rule[3],
        (0, 1, 1): rule[4],
        (0, 1, 0): rule[5],
        (0, 0, 1): rule[6],
        (0, 0, 0): rule[7]
    }

    # Generate the specified number of steps
    for i in range(steps):
        # Copy the current state of the cells
        new_cells = [0] * size

        # Loop over every cell and update its state based on the neighboring cells
        for j in range(size):
            # Get the pattern of the cell and its neighbors
            if j == 0:
                pattern = (cells[size-1], cells[0], cells[1])
            elif j == size-1:
                pattern = (cells[size-2], cells[size-1], cells[0])
            else:
                pattern = (cells[j-1], cells[j], cells[j+1])

            # Update the cell's state based on the pattern
            new_cells[j] = patterns[pattern]

        string=''.join([str(item) for item in cells])
        if print_output:
            print(string)

        # Update the cells with the new state
        cells = new_cells

#Set up the rule
rule = [1, 0, 1, 1, 0, 0, 1, 0]
size = 70
steps = 70

generate_ca(rule, steps,size=size,print_output=1)

0000000000000000000000000000000000010000000000000000000000000000000000
0000000000000000000000000000000000101000000000000000000000000000000000
0000000000000000000000000000000001010100000000000000000000000000000000
0000000000000000000000000000000010101010000000000000000000000000000000
0000000000000000000000000000000101010101000000000000000000000000000000
0000000000000000000000000000001010101010100000000000000000000000000000
0000000000000000000000000000010101010101010000000000000000000000000000
0000000000000000000000000000101010101010101000000000000000000000000000
0000000000000000000000000001010101010101010100000000000000000000000000
0000000000000000000000000010101010101010101010000000000000000000000000
0000000000000000000000000101010101010101010101000000000000000000000000
0000000000000000000000001010101010101010101010100000000000000000000000
0000000000000000000000010101010101010101010101010000000000000000000000
0000000000000000000000101010101010101010101010101000000000000000000000
0000000000000000000001010101010101010101010101010100000000000000000000
0000000000000000000010101010101010101010101010101010000000000000000000
0000000000000000000101010101010101010101010101010101000000000000000000
0000000000000000001010101010101010101010101010101010100000000000000000
0000000000000000010101010101010101010101010101010101010000000000000000
0000000000000000101010101010101010101010101010101010101000000000000000
0000000000000001010101010101010101010101010101010101010100000000000000
0000000000000010101010101010101010101010101010101010101010000000000000
0000000000000101010101010101010101010101010101010101010101000000000000
0000000000001010101010101010101010101010101010101010101010100000000000
0000000000010101010101010101010101010101010101010101010101010000000000
0000000000101010101010101010101010101010101010101010101010101000000000
0000000001010101010101010101010101010101010101010101010101010100000000
0000000010101010101010101010101010101010101010101010101010101010000000
0000000101010101010101010101010101010101010101010101010101010101000000
0000001010101010101010101010101010101010101010101010101010101010100000
0000010101010101010101010101010101010101010101010101010101010101010000
0000101010101010101010101010101010101010101010101010101010101010101000
0001010101010101010101010101010101010101010101010101010101010101010100
0010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010
0101010101010101010101010101010101010101010101010101010101010101010101
1010101010101010101010101010101010101010101010101010101010101010101010

Four classes

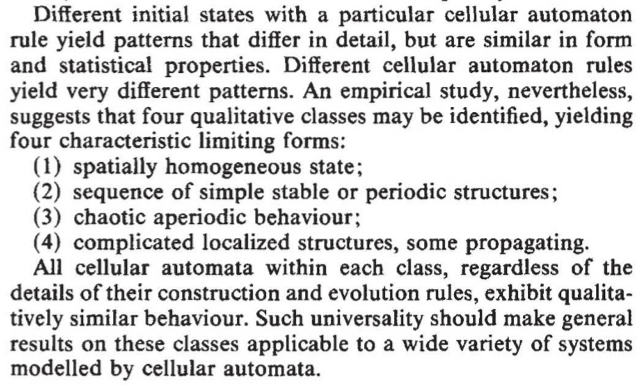

The observation of four different classes of elementary cellular automata was first made in the article by Wolfram, which I discuss in the introduction to the book. Here is what he wrote.
